How to Choose Non Segregated Bus Duct in 2026?

Choosing a Non Segregated Bus Duct in 2026 requires more than comparing catalog prices. It means matching electrical performance with the building’s real operating conditions. A bus duct may serve a factory line, data center, commercial tower, or renewable energy facility. Each environment creates different demands. Fit matters.

Start with the load profile. Confirm continuous current, short-circuit withstand, voltage, temperature rise, and future expansion needs. Review enclosure protection, conductor material, joint design, and tap-off options. Moisture, dust, vibration, and limited ceiling space can change the decision quickly. A compact product is not automatically better. It may complicate inspection or replacement. Details matter.

Reliable selection also depends on evidence. Ask manufacturers for test reports, drawings, installation instructions, maintenance guidance, and traceable quality records. Compare products against recognized project specifications and applicable standards. Experienced engineers should verify coordination with protection devices and upstream equipment. Installation details matter. Poor alignment, loose joints, or blocked ventilation can undermine a well-designed system. Small errors become expensive. Mistakes happen.

This guide examines practical ways to choose Non Segregated Bus Duct for 2026 projects. It considers safety, flexibility, lifecycle cost, delivery support, and technical reliability. Field experience is useful, but it is not perfect. Conditions are often misunderstood. No checklist replaces a site survey and an independent review. The strongest choice performs reliably today and remains serviceable when the facility changes tomorrow.

Table of Contents [Hide]

1 What Is a Non-Segregated Bus Duct?

2 How Non-Segregated Bus Ducts Work

3 Key Specifications for 2026 Applications

4 How to Compare Materials, Ratings, and Safety Features

5 Installation, Maintenance, and Compliance Considerations

What Is a Non-Segregated Bus Duct?

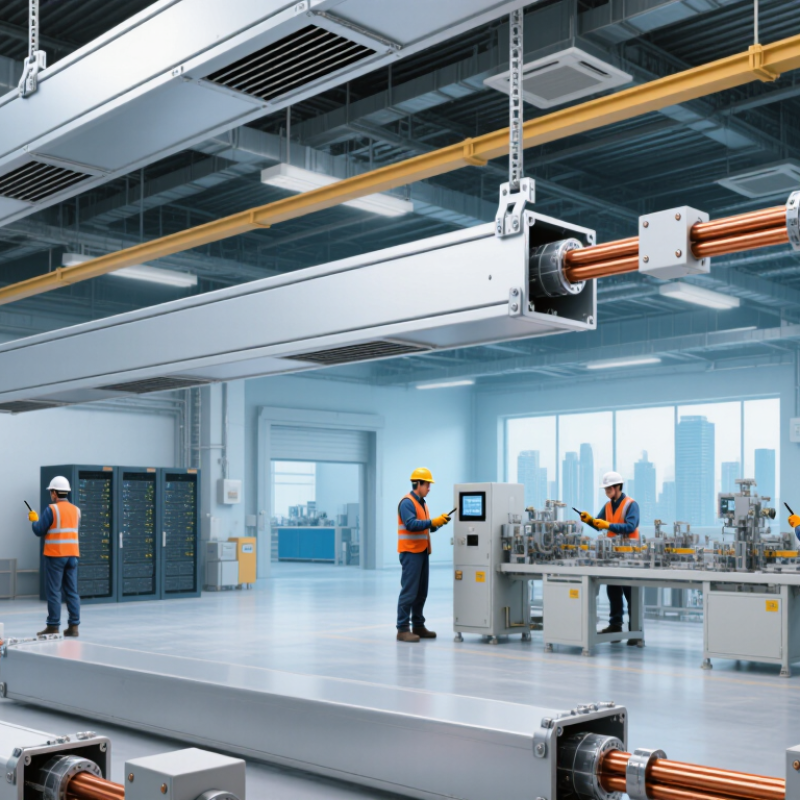

How to Choose Non Segregated Bus Duct in 2026?

A non-segregated bus duct places all phase conductors inside one common metal enclosure. Internal barriers do not separate each conductor. The enclosure provides mechanical protection and helps control electromagnetic effects. Air insulation normally surrounds the copper or aluminum bars. This design supports compact power distribution in factories, commercial buildings, and data centers.

The demand is becoming more serious. The IEA Electricity 2024 report estimates that data centers used about 415 TWh globally in 2024. Their electricity use could reach roughly 945 TWh by 2030. That growth makes continuous, high-capacity distribution increasingly important.

However, capacity alone is not enough. Check rated current, short-circuit withstand, temperature rise, voltage drop, ingress protection, and joint design.

IEC 61439-6 provides the key verification framework for busbar trunking systems.

Installation conditions can change the decision. A 3,200 A system may perform differently in a hot plant room than in a ventilated electrical room. Long horizontal runs also need careful support spacing and thermal review.

I have seen specifications focus heavily on ampacity while overlooking expansion joints and maintenance access. That is an avoidable weakness. Request verified test evidence, not only a catalog figure.

Confirm conductor material, enclosure coating, neutral sizing, and protective-earth continuity. A technically neat selection can still be wrong when future load growth remains unclear.

How Non-Segregated Bus Ducts Work

A non-segregated bus duct carries multiple phases inside one shared metal enclosure. Each conductor rests on strong insulating supports that maintain spacing and alignment. Current moves through the bars, while the enclosure provides mechanical protection and grounding continuity. Heat travels from the conductors into the enclosure and surrounding air. Ventilation therefore affects safe operation.

The shared enclosure makes the system compact and easier to route through industrial spaces. It also requires careful control of temperature, fault current, and insulation clearance. Do not size it from load current alone. Check ambient temperature, installation height, short-circuit withstand, voltage rating, and future expansion.

Tap-off points should match the connected equipment and remain accessible for inspection. In 2026, thermal monitoring can reveal hot joints before damage becomes visible. Still, sensors cannot replace torque checks and insulation testing.

That assumption can be wrong. A practical commissioning lesson is simple: inspect every connection after transport and installation.

Small alignment errors may create uneven pressure, vibration, or local heating. Engineers should compare test results with the design documents and applicable electrical codes.

This step feels slow, but it often exposes forgotten details.

Key Specifications for 2026 Applications

How to Choose Non Segregated Bus Duct in 2026?

Key Specifications for 2026 Applications

Non-segregated bus duct selection starts with the actual load profile, not catalogue size. The International Energy Agency’s Electricity 2024 report projects electricity use from data centres, AI, and cryptocurrency could exceed 1,000 TWh by 2026. That growth raises demand for compact, reliable distribution systems. Specify rated current, operating voltage, frequency, and continuous load carefully. A 20–30% capacity margin can support expansion, but excessive oversizing increases cost and may reduce efficiency.

Check short-time withstand current and peak withstand current against the available fault level. Require verified test evidence under IEC 61439-6, including temperature-rise and dielectric performance. An IP rating suitable for the room matters too. Dust, condensation, and washdown conditions can change the enclosure requirement. Copper or aluminium conductors affect weight, losses, joint design, and installation effort. Do not judge conductivity alone.

In 2026 applications, harmonic-producing loads deserve closer attention. Variable-speed drives and power electronics can increase neutral current and heating. Confirm neutral sizing, joint temperature limits, and derating factors before approval. Field inspections often find poorly torqued joints, even in well-designed systems. That is an uncomfortable weakness. Include torque records, insulation checks, thermal scanning, and phase identification in commissioning documents. IEA data supports stronger capacity planning, but real reliability still depends on installation discipline.

How to Compare Materials, Ratings, and Safety Features

How to Choose Non Segregated Bus Duct in 2026?

Choosing non-segregated bus duct starts with the installation environment, not the catalogue price. Conductors share one enclosure, so insulation quality and spacing deserve close attention. Copper offers strong conductivity and compact sizing. Aluminum can reduce weight and cost, but joint preparation becomes more critical. Check plating, contact pressure, and corrosion resistance at every connection.

Compare ratings carefully. The continuous current rating must match the actual load, future expansion, and local ambient temperature. Review voltage rating, short-circuit withstand, temperature-rise limits, and enclosure protection. A system rated only for normal operation may fail during a fault. Ask for verified test reports, installation instructions, and routine inspection records. Standards such as IEC 61439 can provide a useful reference, but project conditions still require engineering judgment. I have seen designs pass paper checks yet struggle near hot ceilings. That detail is easy to underestimate.

Tips: Measure the route twice. Confirm bend space before ordering. Inspect joints after tightening, then retighten according to the documented procedure. Look for earth continuity, insulated conductors, secure joint covers, and correctly interlocked tap-off units. Choose protection against dust, water, and accidental contact based on the site. Keep spare capacity where practical. More capacity is not always better; oversized equipment can increase cost and complicate installation. Review the decision with a qualified electrical engineer, especially when fault levels or harsh environments are involved.

How to Choose Non-Segregated Bus Duct in 2026?

Material comparison using reference values at approximately 20°C

Material selection

Copper provides higher electrical conductivity, while aluminum offers significantly lower weight and material density. The final choice should also consider joint design, thermal expansion, corrosion protection, and installation conditions.

Ratings to compare

Verify rated current, short-time withstand current, peak withstand current, voltage rating, temperature rise, and enclosure ingress protection. Ratings must be confirmed for the complete assembly, not only the conductor material.

Safety features

Look for tested joints, protective earth continuity, fire-resistant insulation, touch-safe covers, clear phase identification, and design verification in accordance with IEC 61439-6 where applicable.

Reference values: electrical conductivity is expressed as a percentage of the International Annealed Copper Standard (IACS); density values are approximate material properties. Actual bus duct performance depends on conductor geometry, insulation system, enclosure, ambient temperature, installation method, and certified assembly design.

Installation, Maintenance, and Compliance Considerations

How to Choose Non-Segregated Bus Duct in 2026?

Non-segregated bus duct places phase conductors inside one shared enclosure. Choose it only after checking load growth, fault current, ambient temperature, and available installation space. The International Energy Agency reports that buildings consume about 30% of global final energy. Small distribution losses still matter. Specify a rated current with practical expansion capacity, not an optimistic estimate. A 20% spare capacity allowance is often useful, but the project engineer must verify it.

Installation quality controls long-term reliability. Confirm joint alignment before tightening each connection. Use calibrated torque tools and record every reading. Keep the enclosure clear of water pipes, hot surfaces, and mechanical impact. Support spacing must follow the tested assembly instructions. A neat drawing can still hide a difficult access point. That mistake is common, and expensive.

Maintenance should include thermal scanning, insulation checks, visual inspection, and torque verification during planned shutdowns. IEC 61439-6 provides a key compliance framework for busbar trunking systems. Local electrical rules may also require short-circuit withstand verification, protective bonding, enclosure protection, and documented testing. NFPA 70, 2023 Edition, Article 368 addresses busways in applicable installations. Do not rely on a certificate alone. The installer’s records, test instruments, and site conditions complete the compliance evidence. Perhaps the weakest point is documentation. It is often treated as paperwork, but it supports safer decisions years later.
